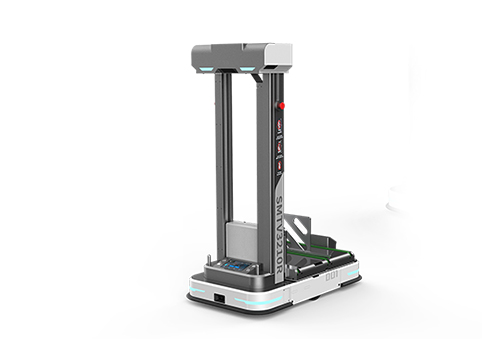

LXSR-SMTV3210R
SMT LOADING AND UNLOADING ROBOT
3D Visual Navigation for Seamless SMT Operations.Enhance SMT workshops with the LXSR-SMTV3210R robot for automatic handling and loading/unloading. Utilizing visual SLAM, it offers easy deployment and adaptability. With 360° safety protection, 3D vision emergency stop, and collision bars, it ensures safety. It supports autonomous/manual charging, 60kg load, and 1.5 m/s speed.
FEATURES
Self-developed Core
Employs independently developed main control and business modules, offering high integration, stability, and reliability
Stable Docking
Highly versatile floating docking platform supports multi-dimensional precise docking requirements, suitable for most application scenarios
Precise Positioning
Utilizes 3D visual SLAM for autonomous positioning and navigation, complemented by 2D code navigation for precise positioning
Efficiency and Productivity
Supports multiple autonomous charging methods such as scheduled, fixed-point, and low-power return-to-home.
TECH SPECS

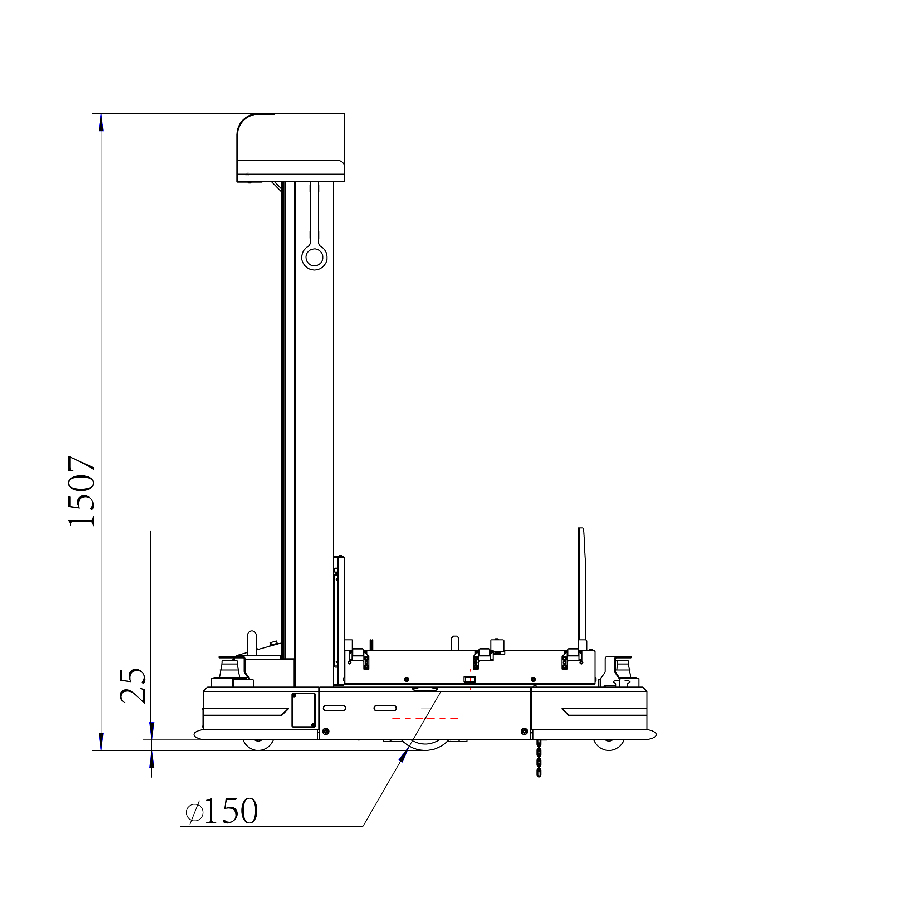

SIDE VIEW

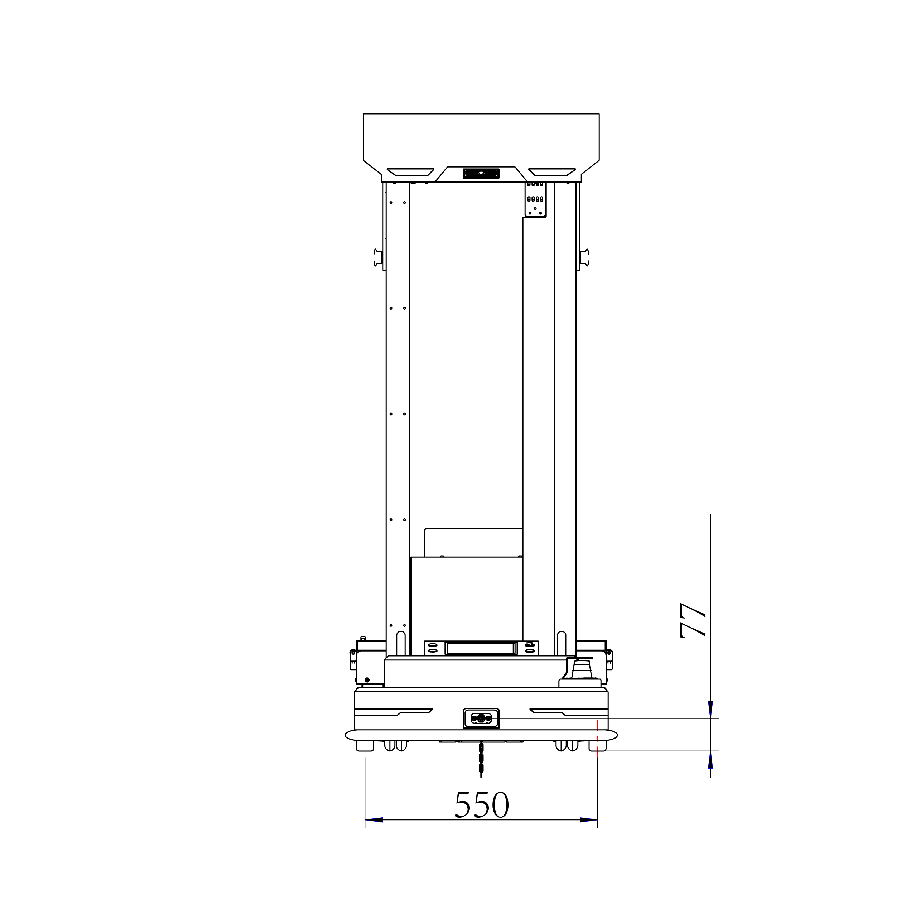

FRONT VIEW

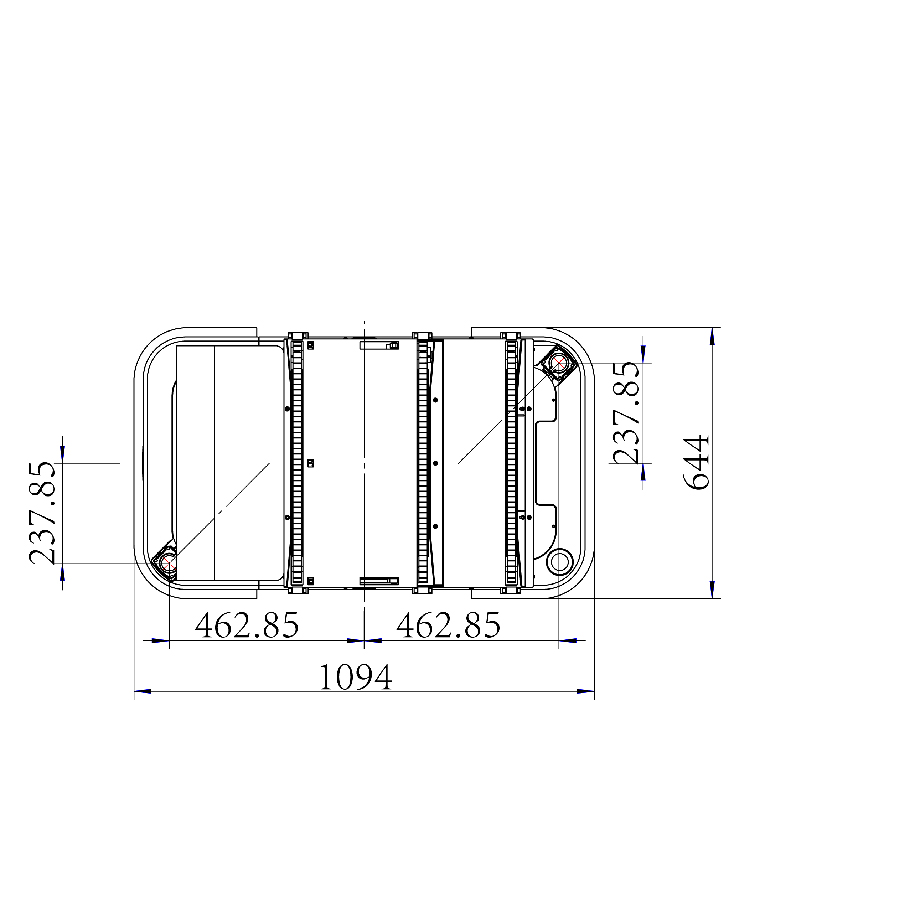

TOP VIEW
1
No. of Load Positions
1.5
Maximum Speed(m/s)
325/565 mm (Customizable)
Max. Carrier Size
1100
Max. Docking Height
Basics
Dimensions(L*W*H)
1100 mm * 650 mm * 1510 mm
Net Weight
≤250 kg
Rotation Diameter
φ1180 mm
Capacities
Docking Height
250-1100 mm
Width Adjustable Range
328/538 mm
Conveying Distance
-
No. of Load Positions
1
Rated Load
60 kg
Max. Carrier Size (L*W*H)
325/565 mm (Customizable)
Safety
Protective Range
Including the body and the load-carrying rack
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the body
Audio-Visual Alarm
Light indication+ Audio prompt
Vision Obstacle Avoidance
Optional
Motion
Drive Mode
2 steering wheel drive
Navigation Mode
Natural navigation
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~1.5 m/s
Navigation Accuracy
±20 mm
Docking Accuracy
±10 mm (laser docking), ±5 mm (QR code visual docking)
Battery
Battery Type
LFP
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
1500 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Manual Remote Controller
Support
Expansion Interface
RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
