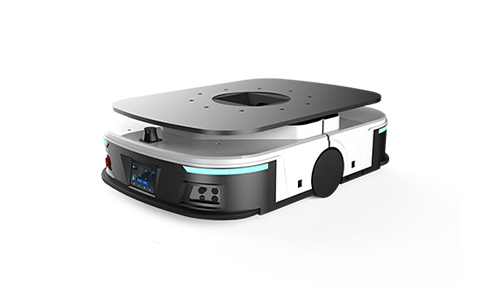

VMR-FR3620L
UNDERRIDE MOBILE ROBOT
Revolutionizing Logistics with Precision, Stability, and Intelligent Safety.
Our material handling robots feature an integrated die-cast chassis, modular design, and 600kg capacity. Utilizing laser SLAM and QR code navigation, they ensure precise positioning. Advanced lifting design supports stable docking. Equipped with core controllers, autonomous charging, and 3D vision obstacle avoidance, they enhance productivity. Ideal for various industries, supporting 24/7 operations for efficient "goods-to-person" workflows.
Our material handling robots feature an integrated die-cast chassis, modular design, and 600kg capacity. Utilizing laser SLAM and QR code navigation, they ensure precise positioning. Advanced lifting design supports stable docking. Equipped with core controllers, autonomous charging, and 3D vision obstacle avoidance, they enhance productivity. Ideal for various industries, supporting 24/7 operations for efficient "goods-to-person" workflows.
FEATURES
Precise Positioning
Utilizes laser SLAM for autonomous positioning and navigation, complemented by 2D code navigation for precise positioning.
Stable Docking
Features a stable and reliable lifting design that ensures secure docking of goods, meeting the demands of most applications.
Self-developed Core
Employs independently developed main control and business modules, offering high integration, stability, and reliability.
Efficiency and Productivity
Supports multiple autonomous charging methods such as scheduled, fixed-point, and low-power return-to-home.
Safety Protection
Supports 3D visual obstacle avoidance, intelligently detecting obstacles for safer operation.
TECH SPECS

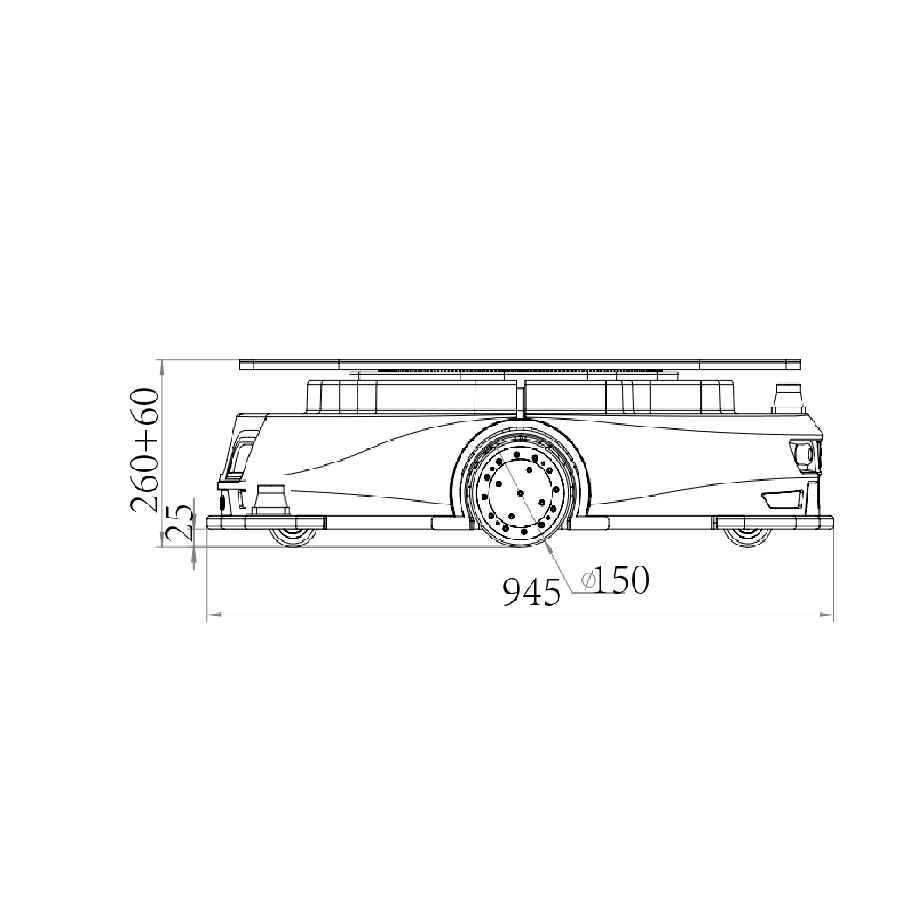

SIDE VIEW

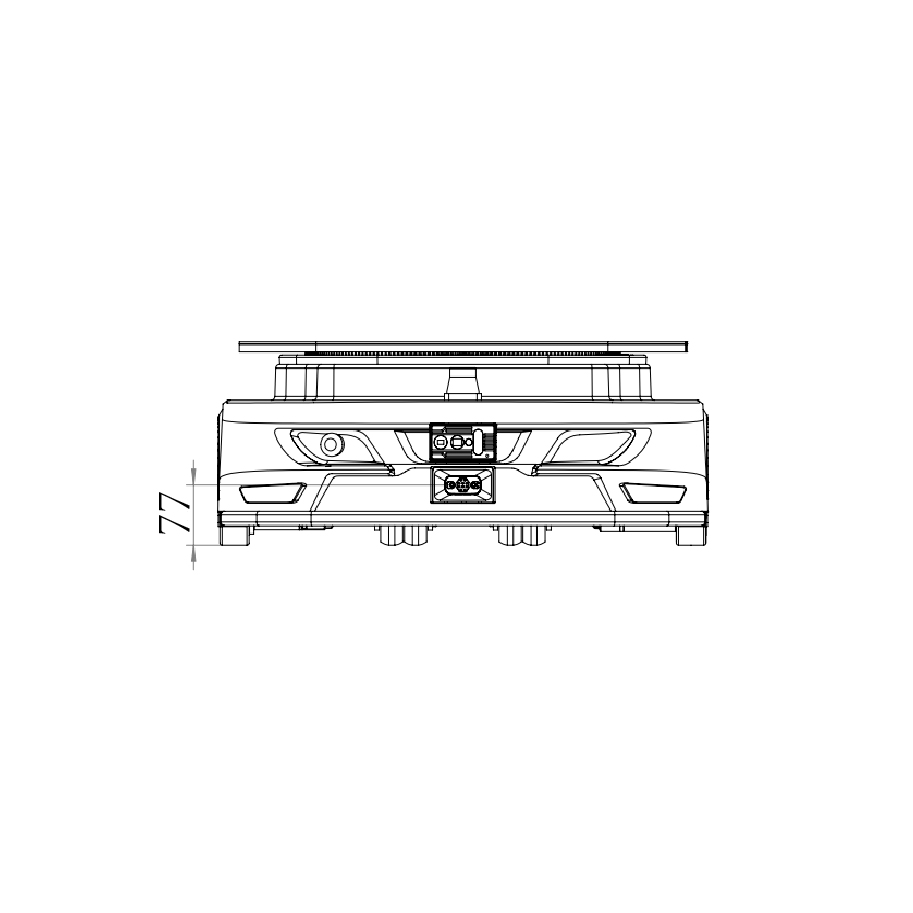

FRONT VIEW

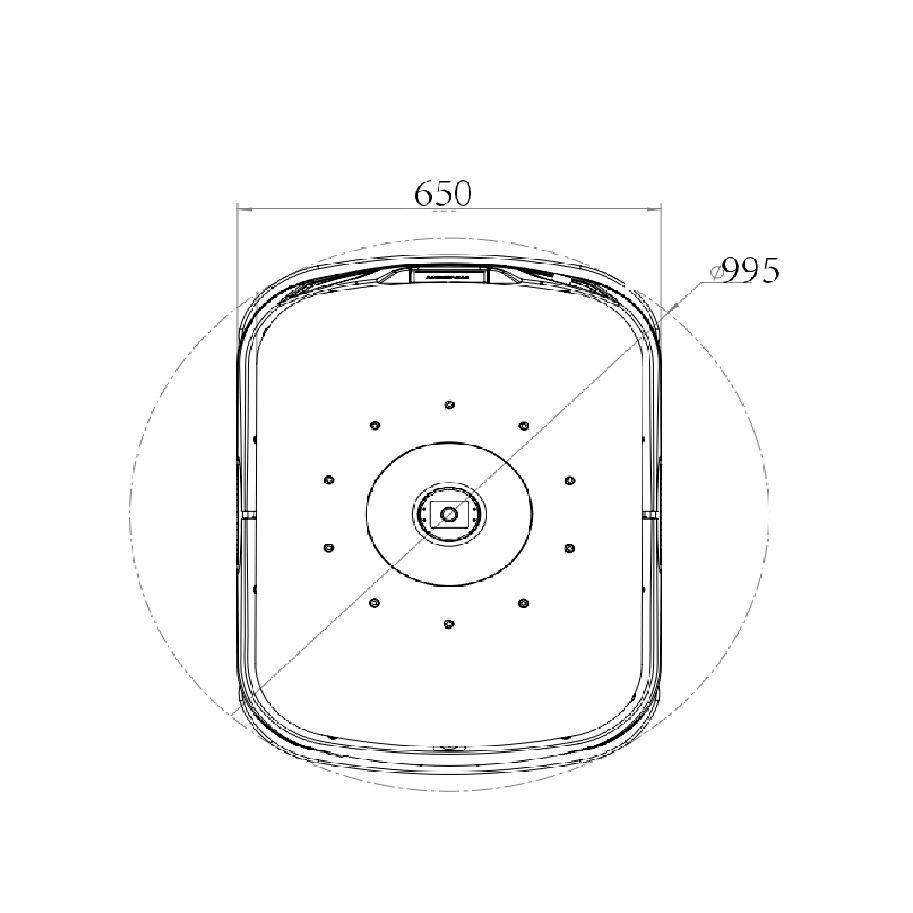

TOP VIEW
600
Load Capacity(kg)
2.0
Maximum Speed(m/s)
995
Rotation Diameter(mm)
60
Lifting Height(mm)
Basics
Dimensions(L*W*H)
945 mm * 650 mm * 260 mm
Net Weight
110 kg
Rotation Diameter
φ995 mm
Capacities
Lifting Height
60 mm
Rated Lifting Load
600 kg
Rated Towing Load
-
Flexible Rotation
Standard, rotate load / robot only or both
Safety
Protective Range
360° coverage
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
3D Vision Obstacle Avoidance
Standard
Motion
Drive Mode
Two-wheeled differential drive
Navigation Mode
Natural navigation
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~2.0 m/s
Navigation Accuracy
±10mm
Docking Accuracy
±5mm
Battery
Battery Type
LFP
Battery Capacity
48V 24AH
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
2000 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Expansion Interface
USB2.0 + RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5% / 3°
Gap Width
≤ 20 mm
Air
No dust, no flammable, explosive or corrosive gases
Network Communication
WIFI/IEEE82.11a/b/g/n/ac 5G(optional)
