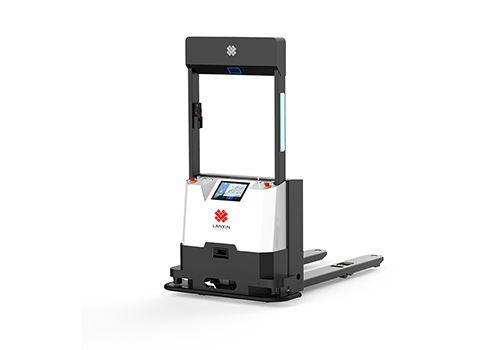

LXSR-FL21500P
UNMANNED FORKLIFT
Intelligent, Precise, and Reliable Material Handling. The LXSR-FL21500P Intelligent Handling Robot excels in precision and reliability. With high-precision vision algorithms, it autonomously adjusts for irregular pallets. Using natural feature mapping, it requires no markers. Equipped with 3D vision, LiDAR, and 360° safety features, it autonomously charges for continuous operation. Ideal for e-commerce and factories, it supports 24/7 multi-shift operations, handling up to 1500kg for efficient logistics.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS

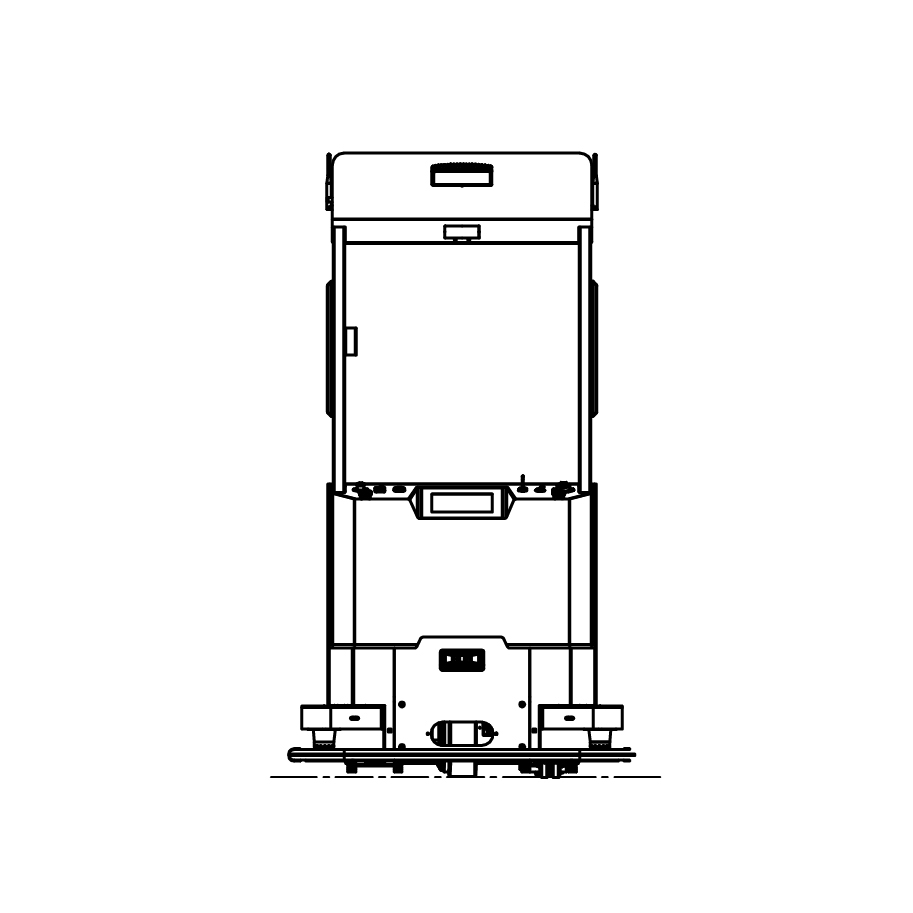

FRONT VIEW

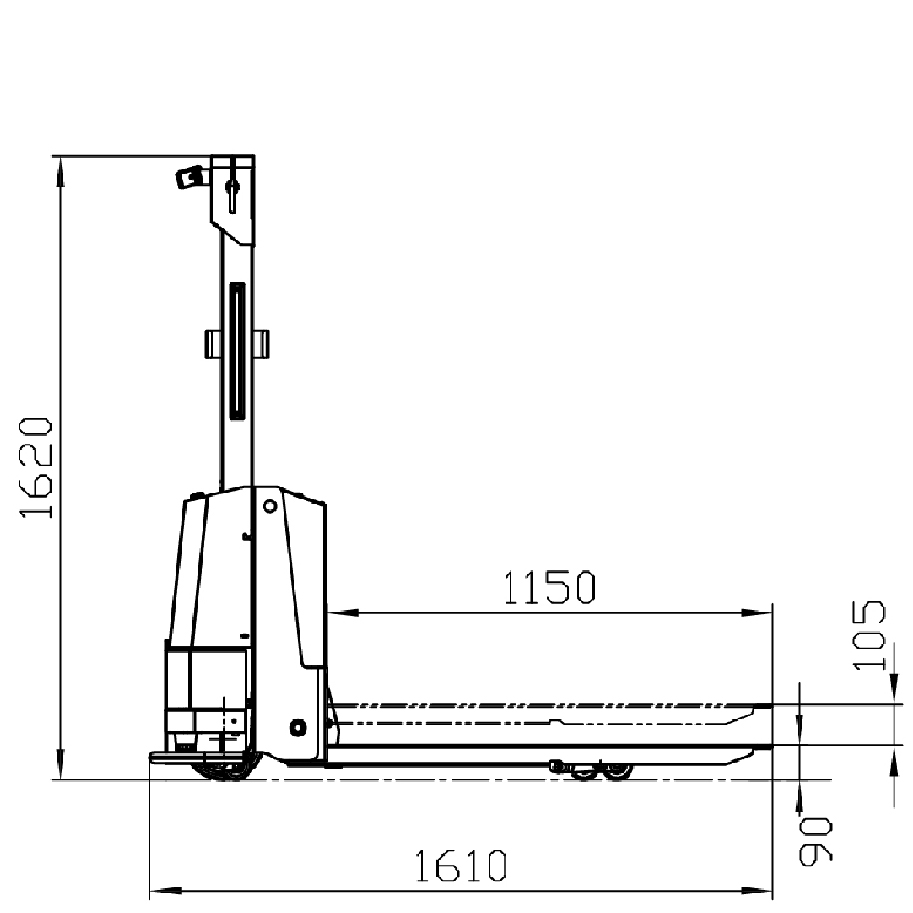

SIDE VIEW

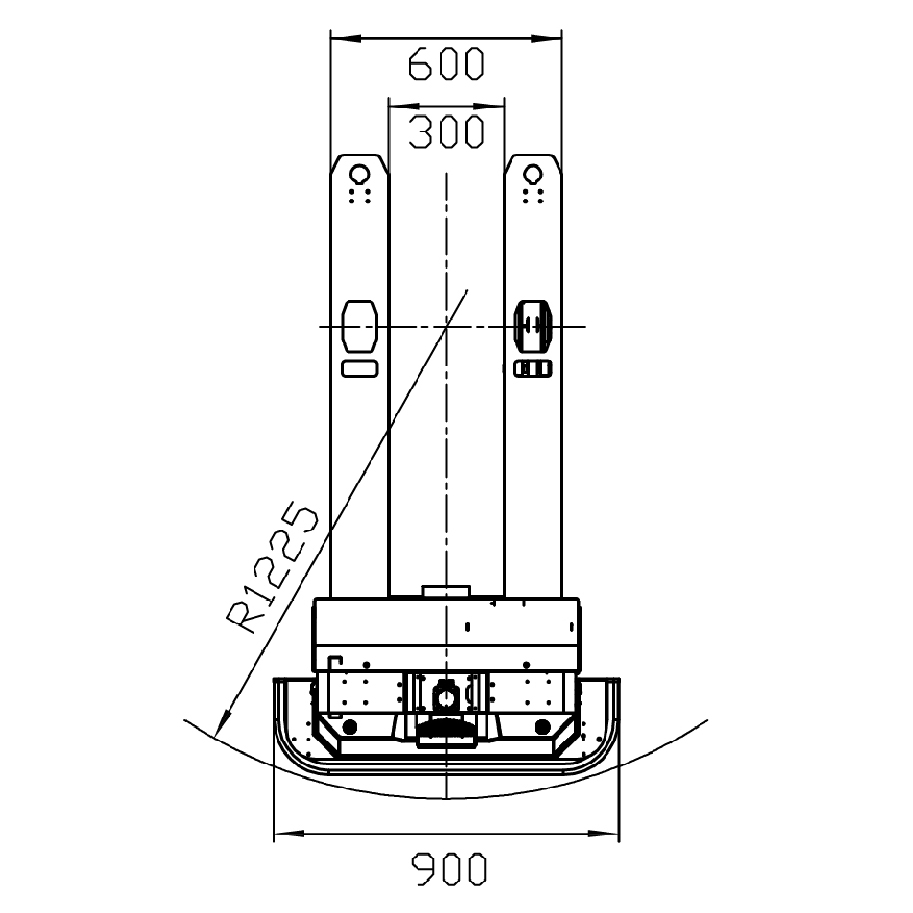

TOP VIEW
1500
Load Capacity(kg)
1.5
Maximum Speed(m/s)
2450
Rotation Diameter(mm)
105
Lifting Height(mm)
Basics
Dimensions (L*W*H)
1610 mm * 900 mm * 1620 mm
Net Weight
240 kg
Rotation Diameter
φ2450 mm
Capacities
Rated Load
1500 kg
Lifting Height
105 mm
Load Center
600 mm
Fork Size (L*W*H)
1150 mm * 150 mm * 50 mm (x2)
Fork Outer Width
600 mm(Standard)
Safety
Protective Range
360° coverage
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by 3 front & rear laser sensors
Safety Edge
Front half-pack protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
Vision Obstacle Avoidance
Optional
Motion
Drive Mode
Single steering wheel
Navigation Mode
Natural navigation, vision / laser SLAM
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~1.5 m/s
Stop Position Accuracy
±10 mm
Stop Angle Accuracy
±1°
Battery
Battery Type
LFP
Battery Capacity
48V 25AH
Battery Life
6-8h
Charging Method
Automatic / Manual charging
Charging Time
≤3h
Life Cycle
2000 cycles
HMI
LCD Panel
Support
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Manual Remote Controller
Support
Expansion Interface
RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5%(no-load) / 3%(full-load)
Network Communication
WiFi IEEE802.11 a/b/g/n/ac/ax, 5G(optional)
Aisle Width for 90° Pallet Pickup
2300 mm (pallet: 1200*1200 mm)
