LXLR-FR3300L
300kg Rated Loaded

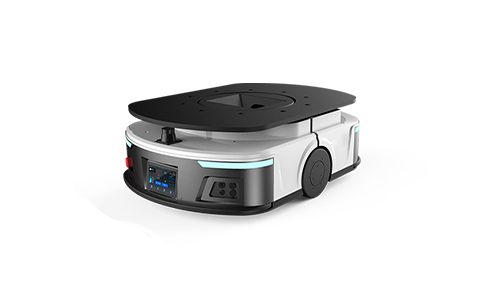

VMR-FR3400L
UNDERRIDE MOBILE ROBOT
Leading Integrated Design for Stable, Modular, and Intelligent Logistics Solutions.
Our material handling robots feature an integrated die-cast chassis and modular designs for enhanced stability. With laser SLAM navigation, they deploy effortlessly without markers. Customizable chassis modules enable seamless integration with on-site systems. Core controllers support autonomous charging and 24/7 operations, ideal for factories and warehouses, with up to 400kg capacity.
Our material handling robots feature an integrated die-cast chassis and modular designs for enhanced stability. With laser SLAM navigation, they deploy effortlessly without markers. Customizable chassis modules enable seamless integration with on-site systems. Core controllers support autonomous charging and 24/7 operations, ideal for factories and warehouses, with up to 400kg capacity.
FEATURES
Convenient Deployment
Utilizes 3D laser SLAM for autonomous positioning and navigation, requiring no markers or site modifications, making deployment more convenient.
Flexible Customization
Various business units such as rollers and carriers can be integrated based on the standard chassis module, enabling quick customization.
Full Application
Achieves cross-regional application by physically or network connecting and interacting with systems like doors and elevators within the application environment.
Self-developed Core
Employs independently developed main control and business modules, offering high integration, stability, and reliability.
Efficiency and Productivity
Supports multiple autonomous charging methods such as scheduled, fixed-point, and low-power return-to-home.
TECH SPECS

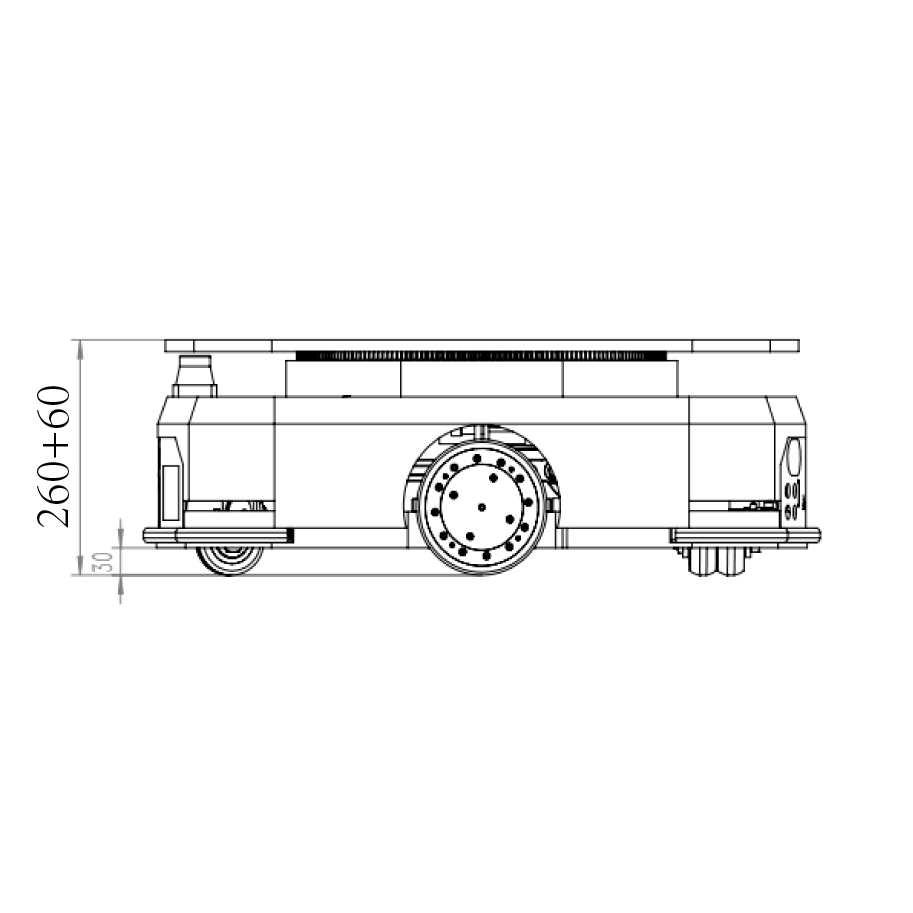

SIDE VIEW

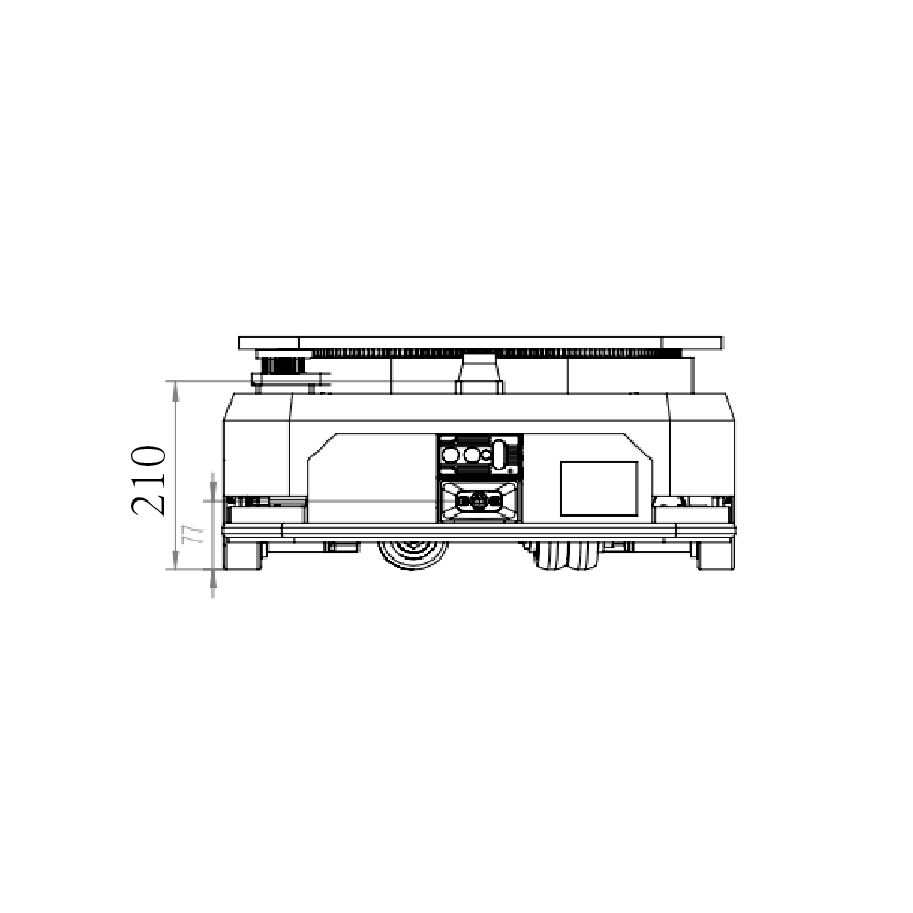

FRONT VIEW

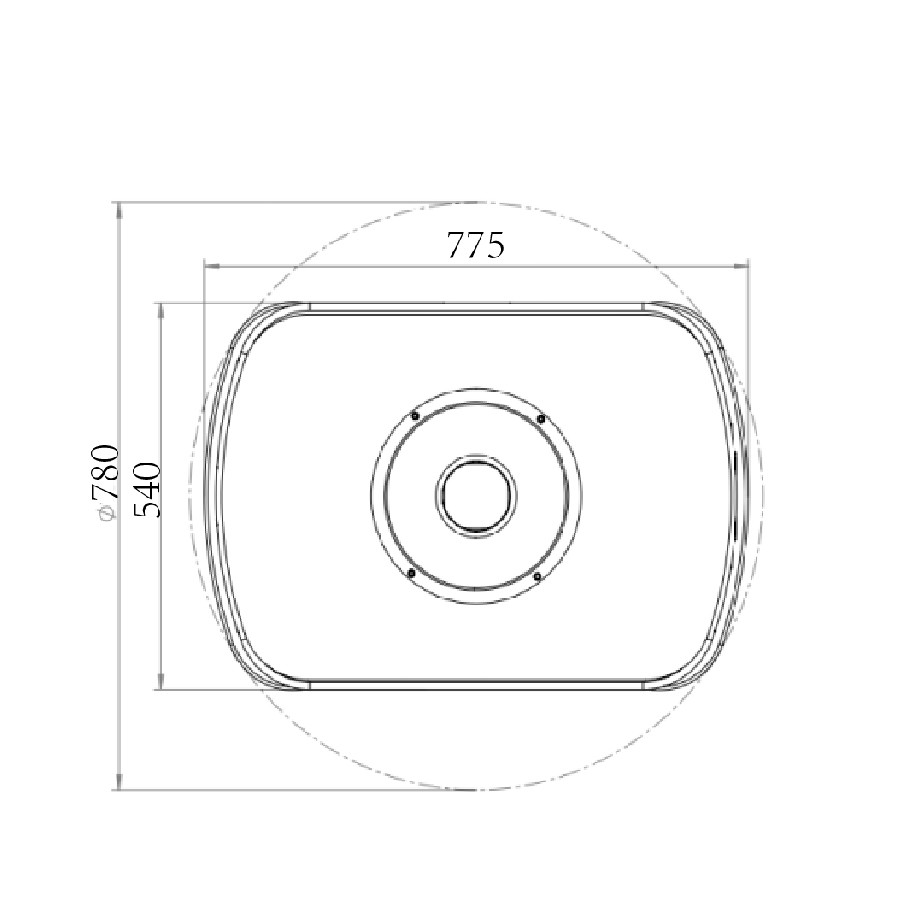

TOP VIEW
400
Load Capacity(kg)
2.0
Maximum Speed(m/s)
995
Rotation Diameter(mm)
60
Lifting Height(mm)
Basics
Dimensions(L*W*H)
775 mm * 540 mm * 260 mm
Net Weight
100 kg
Rotation Diameter
φ995 mm
Capacities
Lifting Height
60 mm
Rated Lifting Load
600 kg
Rated Towing Load
-
Flexible Rotation
Standard, rotate load / robot only or both
Safety
Protective Range
360° coverage
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
3D Vision Obstacle Avoidance
Standard
Motion
Drive Mode
Two-wheeled differential drive
Navigation Mode
Natural navigation
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~2.0 m/s
Navigation Accuracy
Natural navigation
Docking Accuracy
Forward, backward, rotate, left / right turn
Battery
Battery Type
LFP
Battery Capacity
48V 21AH
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
2000 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Expansion Interface
USB2.0 + RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5% / 3°
Gap Width
≤ 20 mm
Air
No dust, no flammable, explosive or corrosive gases
Network Communication
WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional)
