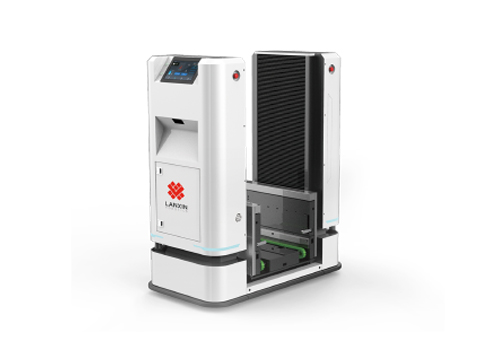

LXSR-SMT4200R
SMT LOADING AND UNLOADING ROBOT
Precision and Safety for Your SMT Workshops.
Transform your SMT workshops with the LXSR-SMT4200R material handling robot. It features omnidirectional movement and advanced 3D vision for superior obstacle avoidance and safety. Ideal for automatic handling and loading/unloading, it integrates seamlessly and performs reliably. With 50kg load capacity, 1.5 m/s speed, and autonomous/manual charging, it enhances efficiency and safety in manufacturing.
Transform your SMT workshops with the LXSR-SMT4200R material handling robot. It features omnidirectional movement and advanced 3D vision for superior obstacle avoidance and safety. Ideal for automatic handling and loading/unloading, it integrates seamlessly and performs reliably. With 50kg load capacity, 1.5 m/s speed, and autonomous/manual charging, it enhances efficiency and safety in manufacturing.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS

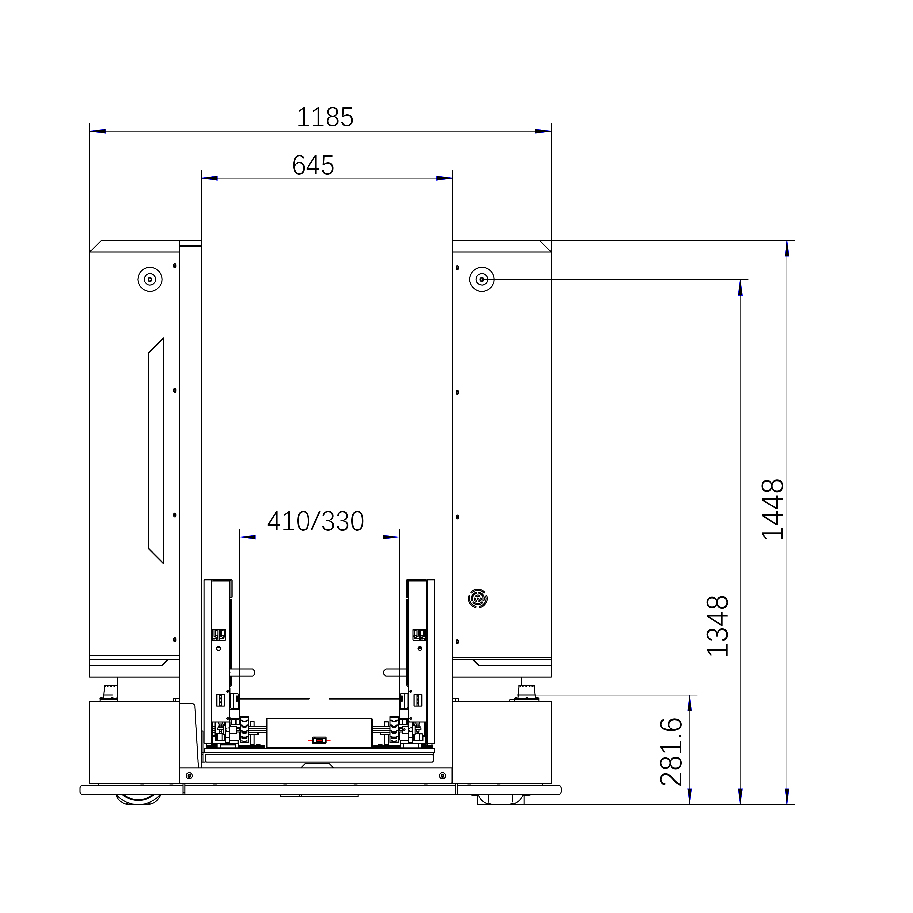

SIDE VIEW

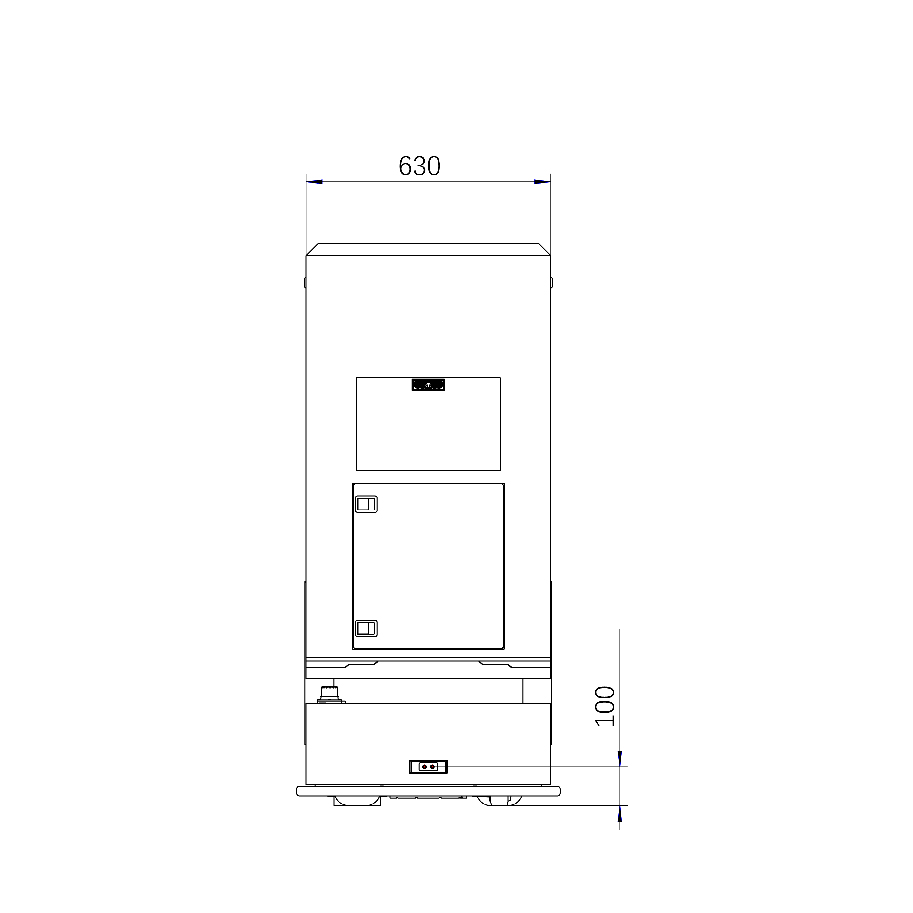

FRONT VIEW

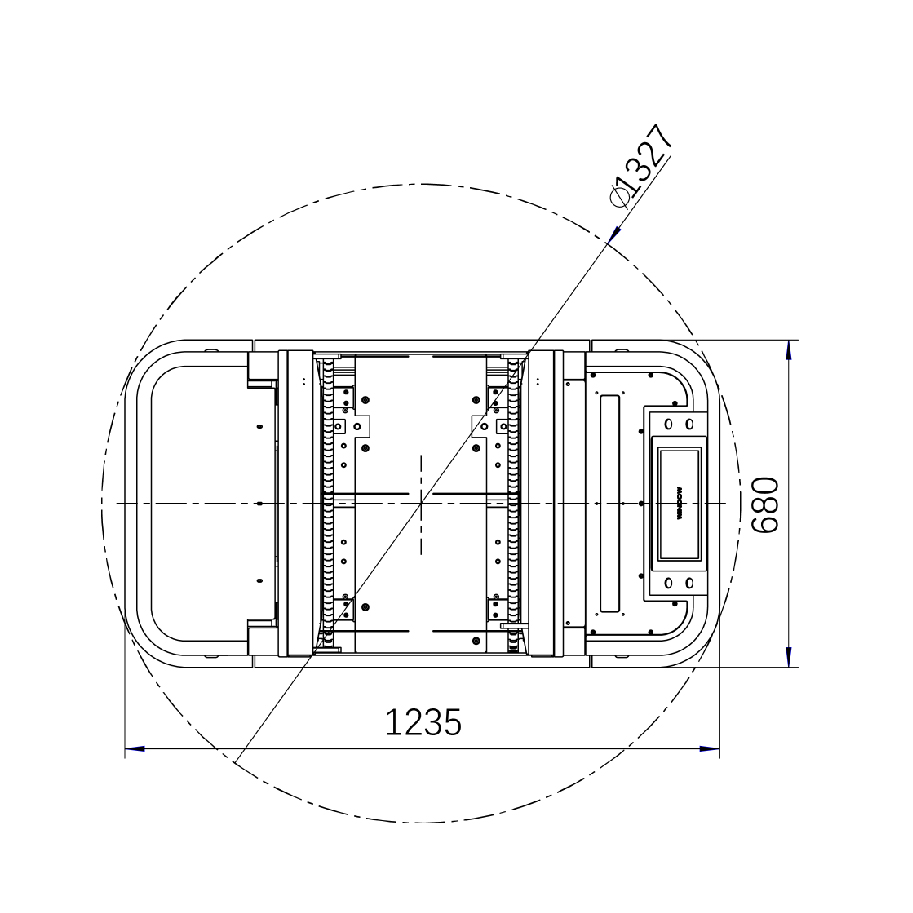

TOP VIEW
1
No. of Load Positions
400
Width Adjustable Range (+10mm)
1200
Max.Docking Height(mm)
550
Conveying Distance(mm)
Basics
Dimensions(L*W*H)
1230 mm * 680 mm * 1450 mm
Net Weight
350 kg
Rotation Diameter
φ1330 mm
Capacities
Docking Height
225-1200 mm
Width Adjustable Range
320/400 mm(+10mm)
Conveying Distance
550 mm, single side extending, convey on both sides
No. of Load Positions
1
Rated Load
50 kg
Max. Carrier Size (L*W*H)
535 mm * 530 mm * 570 mm
Safety
Protective Range
Including the body and the load-carrying rack
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the body
Audio-Visual Alarm
Light indication+ Audio prompt
Vision Obstacle Avoidance
Optional
Motion
Drive Mode
2 steering wheel drive
Navigation Mode
Natural navigation
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~1.5 m/s
Navigation Accuracy
±20 mm
Docking Accuracy
±10 mm (laser docking), ±5 mm (QR code visual docking)
Battery
Battery Type
LFP
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
1500 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Manual Remote Controller
Support
Expansion Interface
RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
