LXLR-FR3300L
300kg Rated Loaded

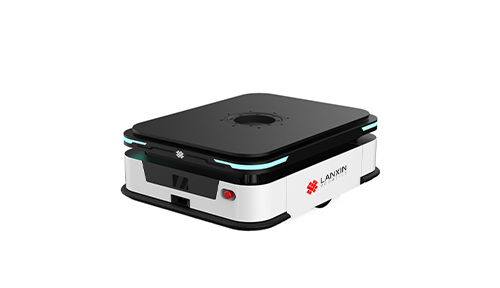

LXLR-FR31000L
UNDERRIDE MOBILE ROBOT
Effortless Deployment, Custom Flexibility, and Intelligent Logistics for 24/7 Heavy-Duty Operations.
It uses 360° coverage and 3D obstacle avoidance for safe operation in busy environments. The real SLAM navigation system allows immediate use without extra equipment. Equipped with LX-MRDVS, it handles various tasks like docking, obstacle avoidance, and navigation with powerful perception capabilities.
It uses 360° coverage and 3D obstacle avoidance for safe operation in busy environments. The real SLAM navigation system allows immediate use without extra equipment. Equipped with LX-MRDVS, it handles various tasks like docking, obstacle avoidance, and navigation with powerful perception capabilities.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
Strong Compatibility
Allow easy installation of different equipment such as rollers, shelves, and safety boxes, while provide rich interfaces to meet diverse application needs.
TECH SPECS
1000
Load Capacity(kg)
1.5
Maximum Speed(m/s)
1200
Rotation Diameter(mm)
60
Lifting Height(mm)
Basics
Dimensions(L*W*H)
950 mm * 750 mm * 300 mm
Net Weight
≤250 kg
Rotation Diameter
φ1200 mm
Capacities
Lifting Height
60 mm
Rated Lifting Load
600 kg
Rated Towing Load
-
Flexible Rotation
Standard, rotate load / robot only or both
Safety
Protective Range
360° coverage
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
3D Vision Obstacle Avoidance
Standard
Motion
Drive Mode
Two-wheeled differential drive
Navigation Mode
Natural navigation
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~1.5 m/s
Navigation Accuracy
Natural navigation
Docking Accuracy
Forward, backward, rotate, left / right turn
Battery
Battery Type
LFP
Battery Capacity
48V 32AH
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
1500 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Expansion Interface
RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5% / 3°
Gap Width
≤ 20 mm
Air
No dust, no flammable, explosive or corrosive gases
Network Communication
WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional)
