VMR-FR31510L
UNDERRIDE MOBILE ROBOT
Intelligent, Powerful, and Reliable Logistics for Every Industry.

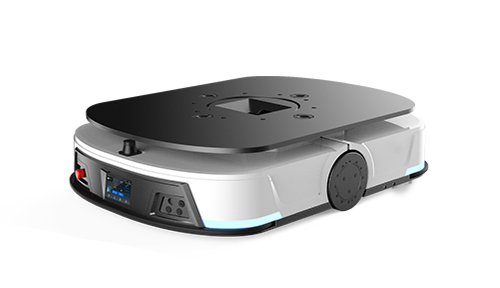

Introducing the VMR-FR31510L Intelligent Handling Robot with Lanxin’s LX-MRDVS® deep vision system and VMR core controller. It supports a 1500kg load, measures 1145L*815W*260Hmm, and rotates within 1200mm. With 0-2m/s speed, natural navigation, 360° safety protection, and 3D environmental perception, it detects obstacles and applies adaptive avoidance. Its die-cast chassis and modular design ensure stability and easy deployment.
Introducing the VMR-FR31510L Intelligent Handling Robot with Lanxin’s LX-MRDVS® deep vision system and VMR core controller. It supports a 1500kg load, measures 1145L*815W*260Hmm, and rotates within 1200mm. With 0-2m/s speed, natural navigation, 360° safety protection, and 3D environmental perception, it detects obstacles and applies adaptive avoidance. Its die-cast chassis and modular design ensure stability and easy deployment.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS

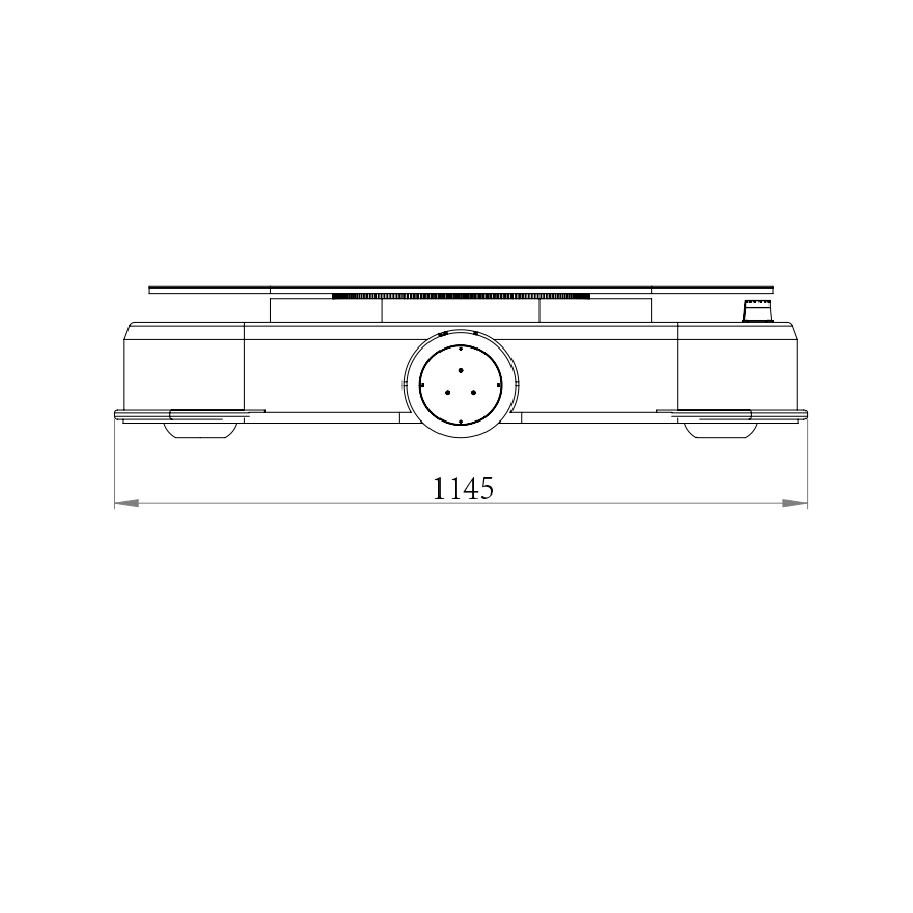

SIDE VIEW

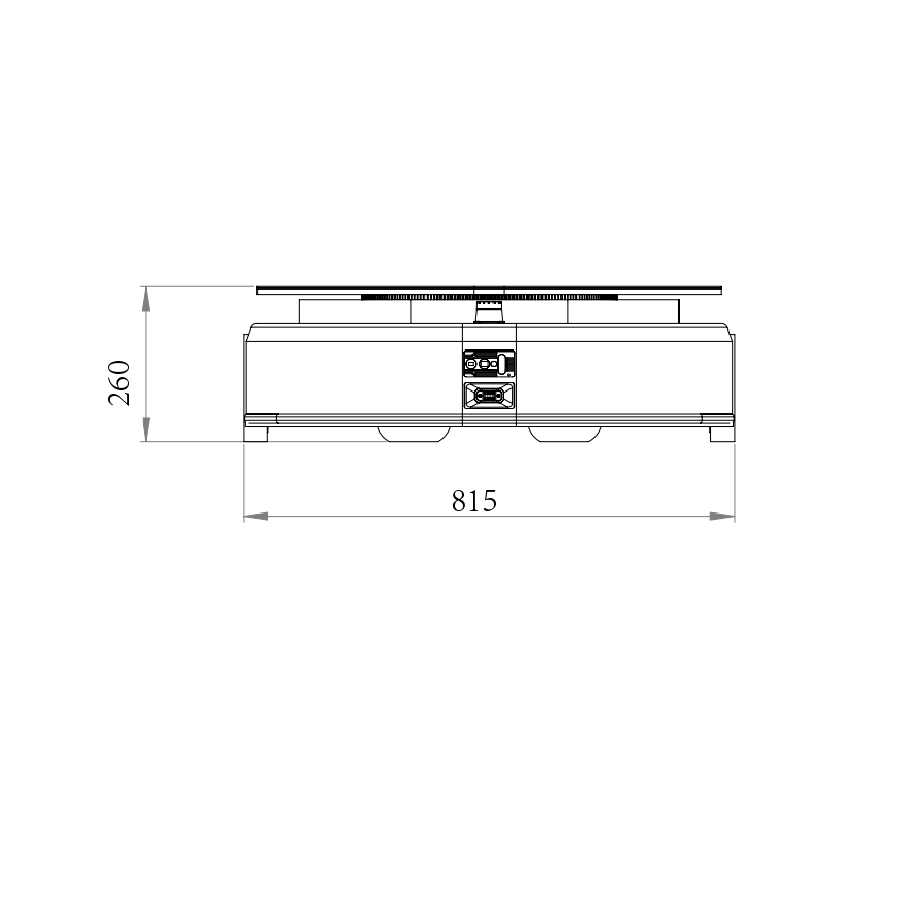

FRONT VIEW

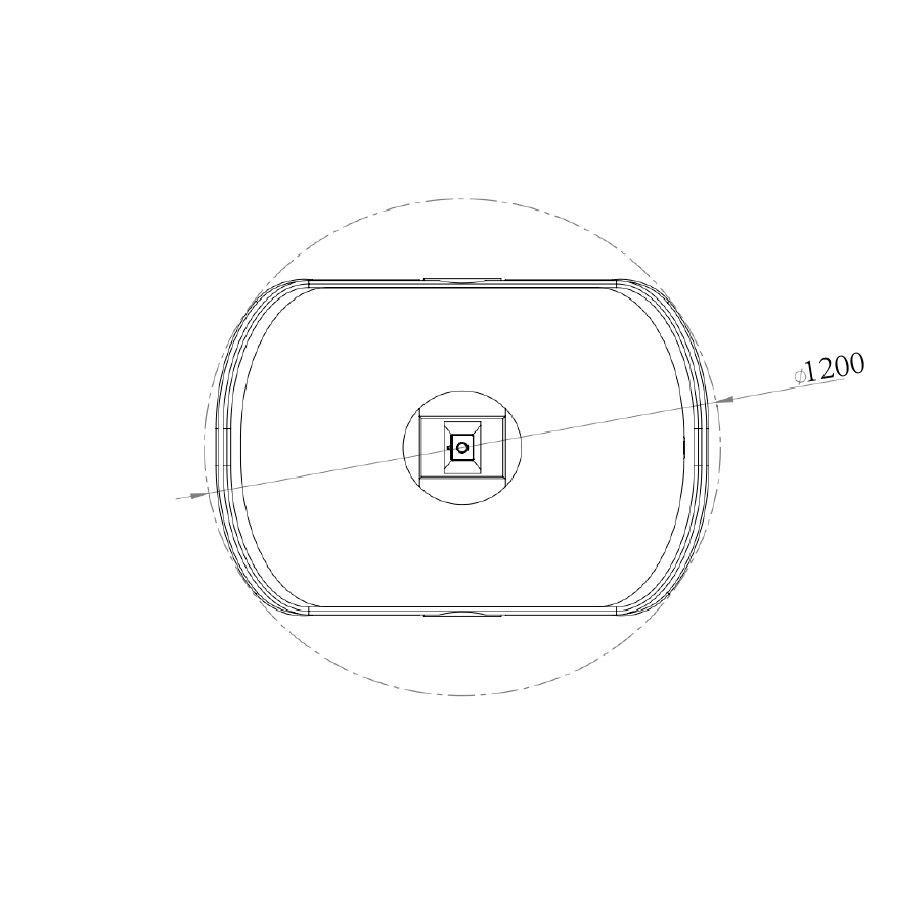

TOP VIEW
1500
Load Capacity(kg)
2.0
Maximum Speed(m/s)
1200
Rotation Diameter(mm)
100
Lifting Height(mm)
Basics
Dimensions(L*W*H)
1145 mm * 815 mm * 260 mm
Net Weight
200 kg
Rotation Diameter
φ1200 mm
Capacities
Lifting Height
100 mm
Rated Lifting Load
1500 kg
Rated Towing Load
-
Flexible Rotation
Standard, rotate load / robot only or both
Safety
Protective Range
360° coverage
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
3D Vision Obstacle Avoidance
Standard
Motion
Drive Mode
Two-wheeled differential drive
Navigation Mode
Natural navigation
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~2.0 m/s
Navigation Accuracy
Natural navigation
Docking Accuracy
Forward, backward, rotate, left / right turn
Battery
Battery Type
LFP
Battery Capacity
48V 40AH
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
2000 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Expansion Interface
USB2.0 + RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5% / 3°
Gap Width
≤ 20 mm
Air
No dust, no flammable, explosive or corrosive gases
Network Communication
WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional)
