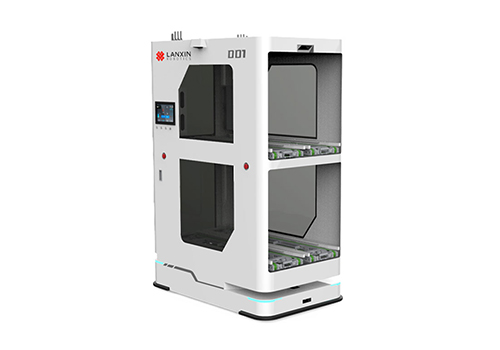

LXSR-GF3310R
WAFER CARRIER BASKET ROBOT
High-Precision Transfer for Photovoltaic Workshops.
Elevate your photovoltaic workshops with the LXSR-GF3310R basket material handling robot. It automates the transfer and loading/unloading of dry and wet baskets using the Lanxin Mobile Robot Deep Vision System (LX-MRDVS®) for precise docking. With dual navigation methods—visual SLAM and laser SLAM—it adapts to various scenarios without manual marking. Supporting autonomous and manual charging, it handles up to 300kg and operates at speeds up to 1.5 m/s, enhancing efficiency and precision in photovoltaic manufacturing.
Elevate your photovoltaic workshops with the LXSR-GF3310R basket material handling robot. It automates the transfer and loading/unloading of dry and wet baskets using the Lanxin Mobile Robot Deep Vision System (LX-MRDVS®) for precise docking. With dual navigation methods—visual SLAM and laser SLAM—it adapts to various scenarios without manual marking. Supporting autonomous and manual charging, it handles up to 300kg and operates at speeds up to 1.5 m/s, enhancing efficiency and precision in photovoltaic manufacturing.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS

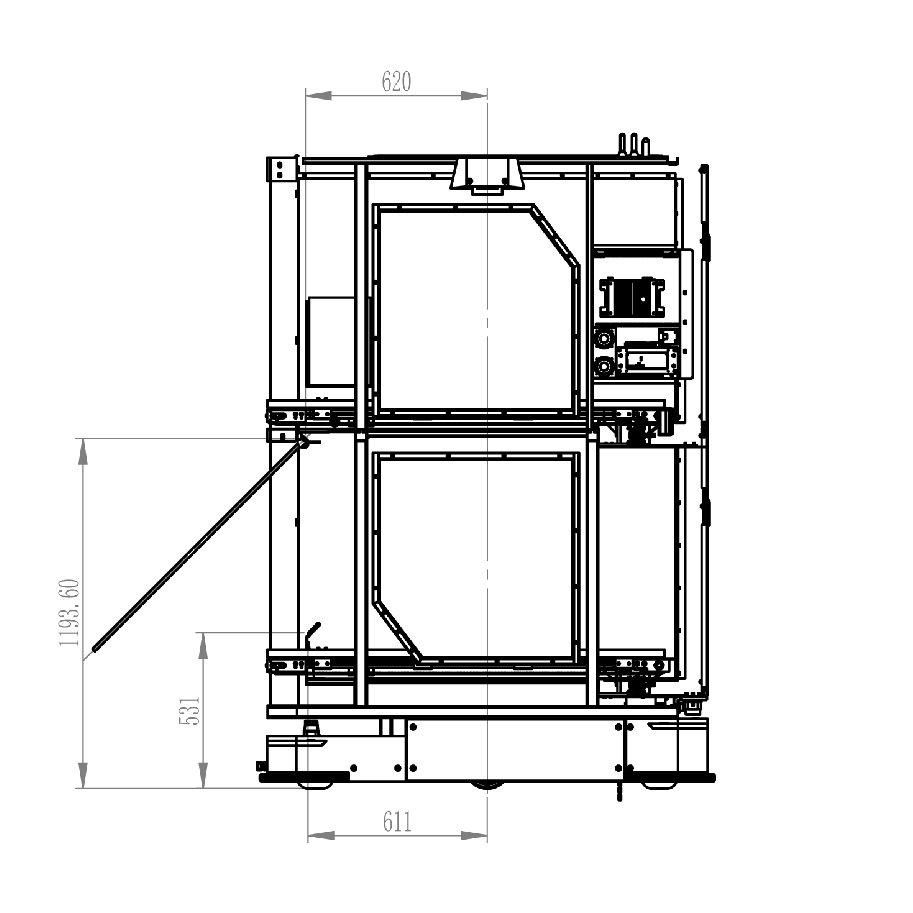

SIDE VIEW

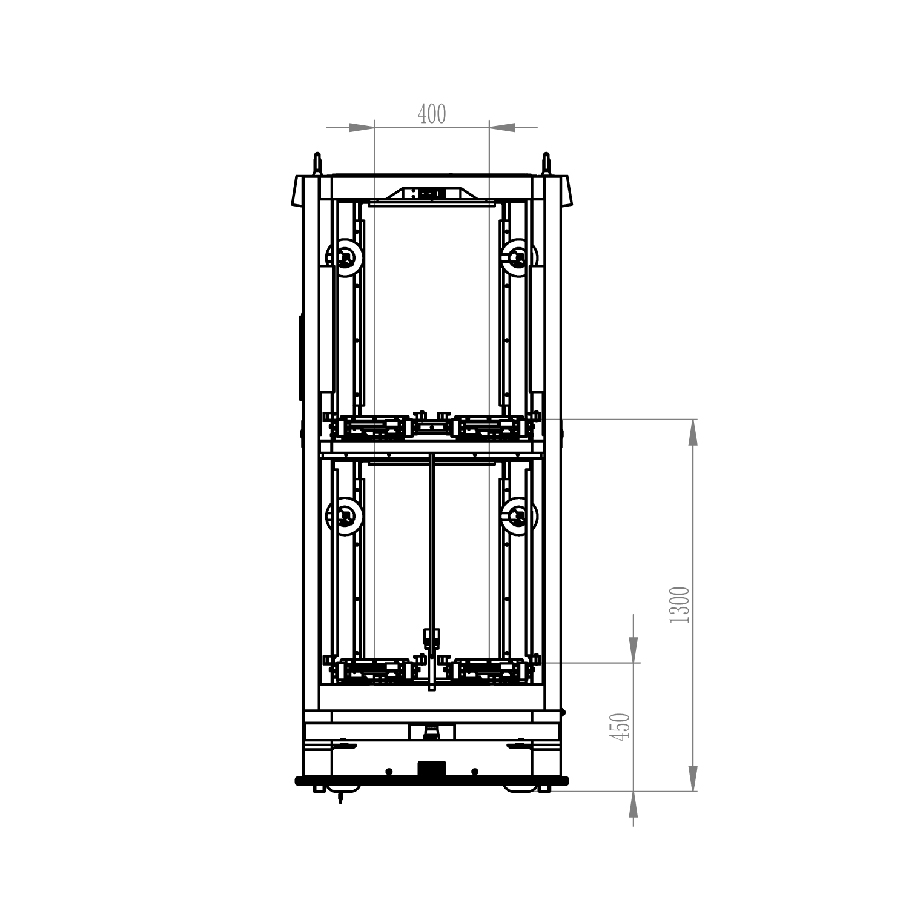

FRONT VIEW

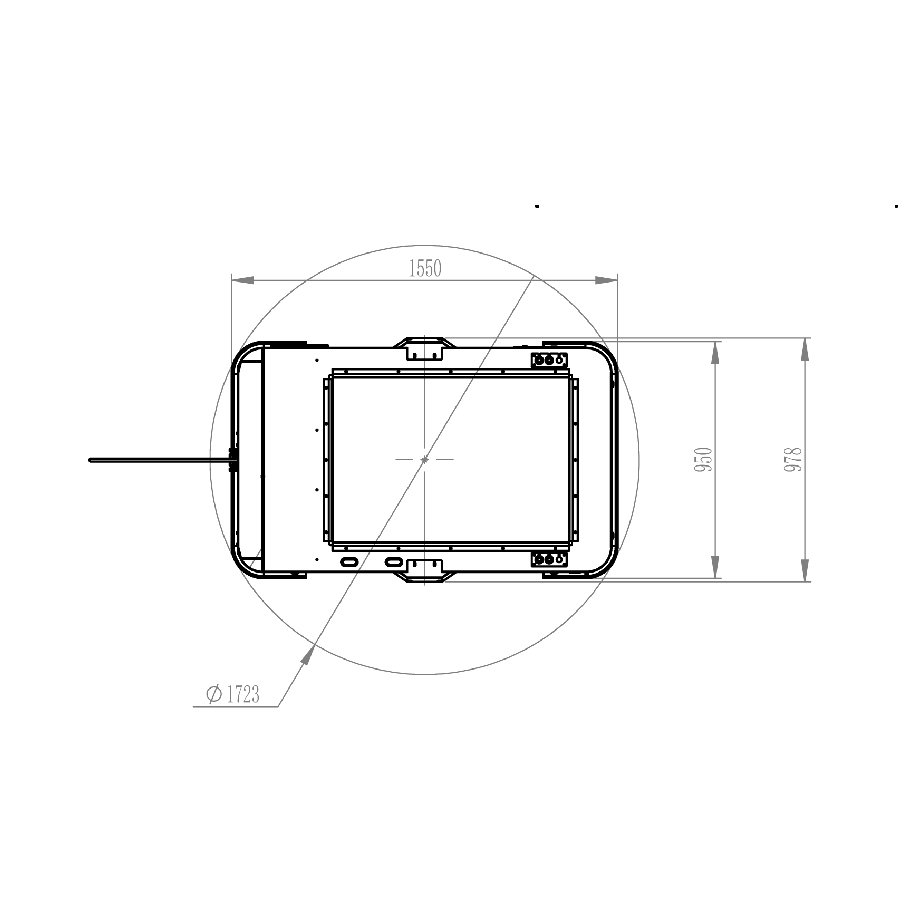

TOP VIEW
3000
Load Capacity(kg)
1.5
Maximum Speed(m/s)
4300
Rotation Diameter(mm)
135
Lifting Height(mm)
Basics
Dimensions(L*W*H)
1550 mm * 980 mm * 2150 mm
Net Weight
300 kg
Rotation Diameter
φ1730 mm
Capacities
No. of Conveyor Lines
4 lines(two rows and two columns)
Conveyor Line Pitch
400 mm(center distance )
Docking Height
H1: 450 mm, H2: 1300 mm
Rated Load
300 kg
No. of Handled Baskets
20 pcs(5 pcs/line * 4 lines)
Conveyor Speed
0-0.3 m/s
Safety
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Protective Range
360° coverage by front & rear sensors, support 3D protection along running direction
Safety Edge
Front & rear
Emergency Push Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
Motion
Drive Mode
Two-wheeled differential drive
Navigation Mode
Natural navigation
Speed
0~1.5 m/s
Docking Accuracy
±2mm ／±1°
Battery
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
≤1.5h
Life Cycle
2500 cycles
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Air
No dust, no flammable, explosive or corrosive gases
Network Communication
WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional)
