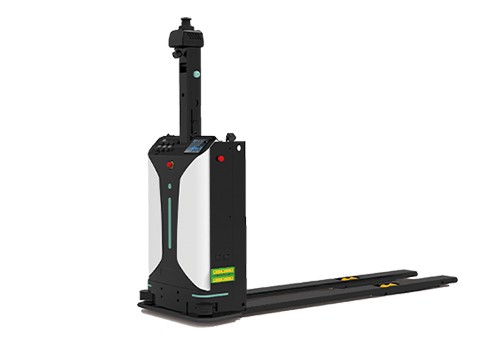

LXSR-FL23004P
LONG FORK UNMANNED FORKLIFT
Smart, Precise, and Safe Material Handling for Continuous Operations.
The LXSR-FL23004P Intelligent Handling Robot ensures precision and reliability with high-precision vision algorithms that autonomously adjust for irregular pallets. It navigates using natural features, eliminating tracks or markers, and autonomously plans paths. Equipped with 3D vision, LiDAR, and 360° safety features, it supports autonomous charging for continuous operation. Ideal for high-frequency loading/unloading in diverse industries, it guarantees efficient, 24/7 multi-shift operations.
The LXSR-FL23004P Intelligent Handling Robot ensures precision and reliability with high-precision vision algorithms that autonomously adjust for irregular pallets. It navigates using natural features, eliminating tracks or markers, and autonomously plans paths. Equipped with 3D vision, LiDAR, and 360° safety features, it supports autonomous charging for continuous operation. Ideal for high-frequency loading/unloading in diverse industries, it guarantees efficient, 24/7 multi-shift operations.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS

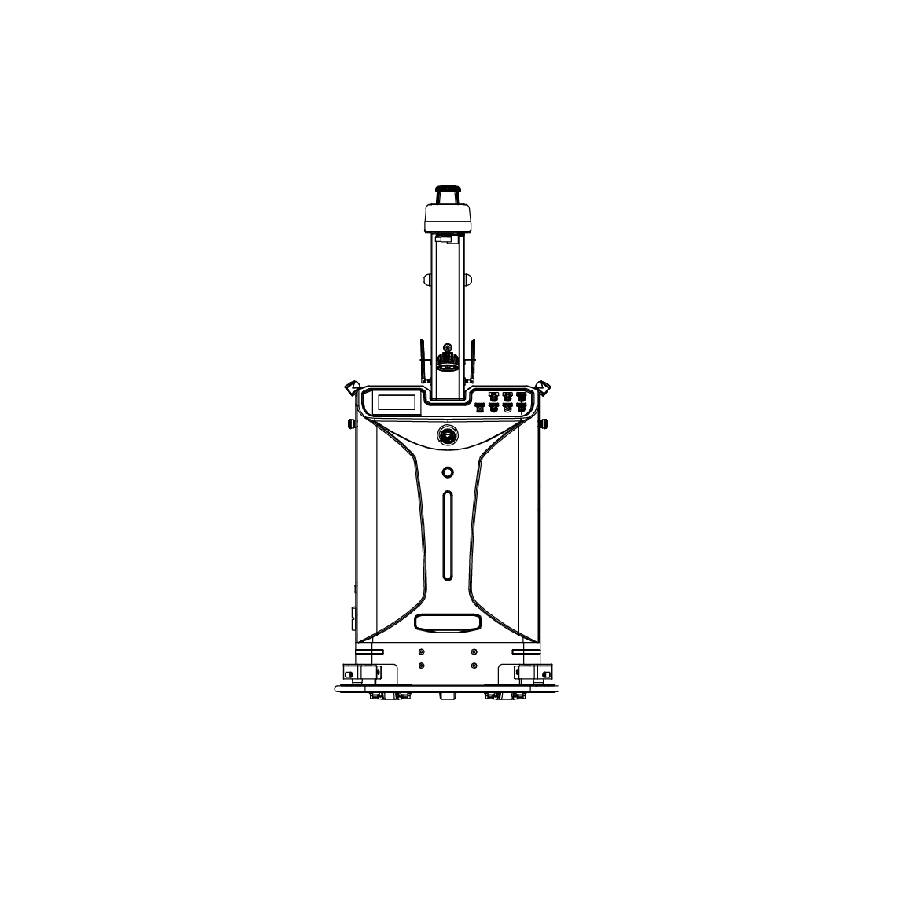

FRONT VIEW

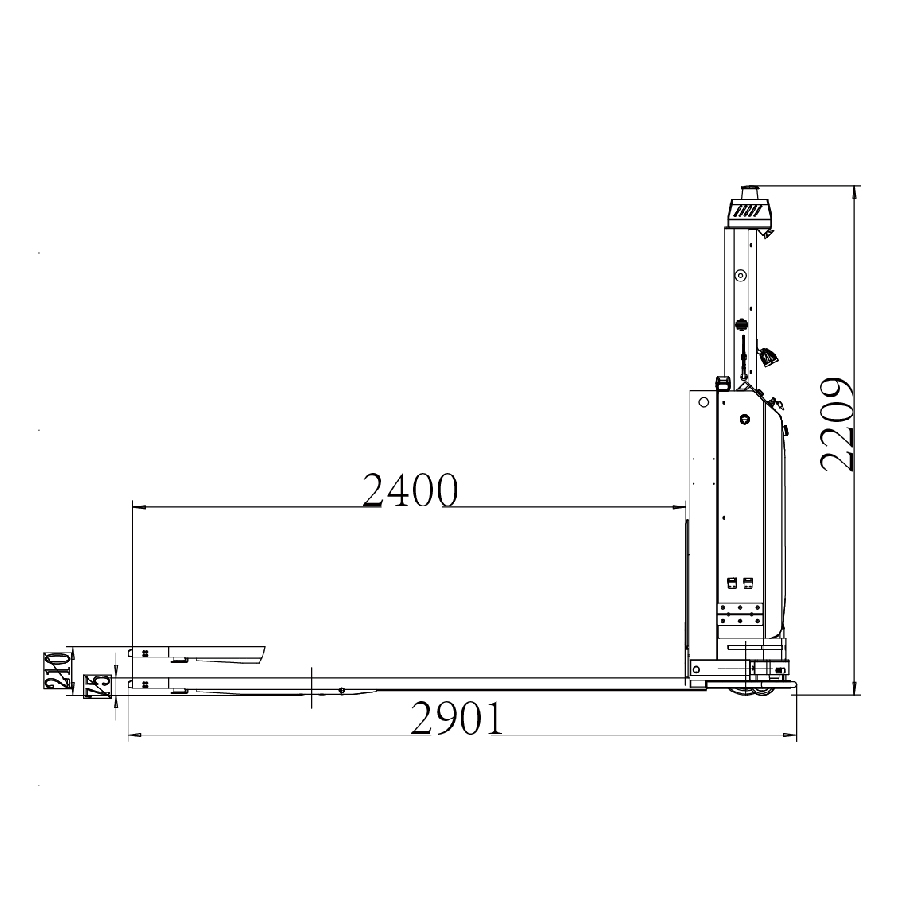

SIDE VIEW

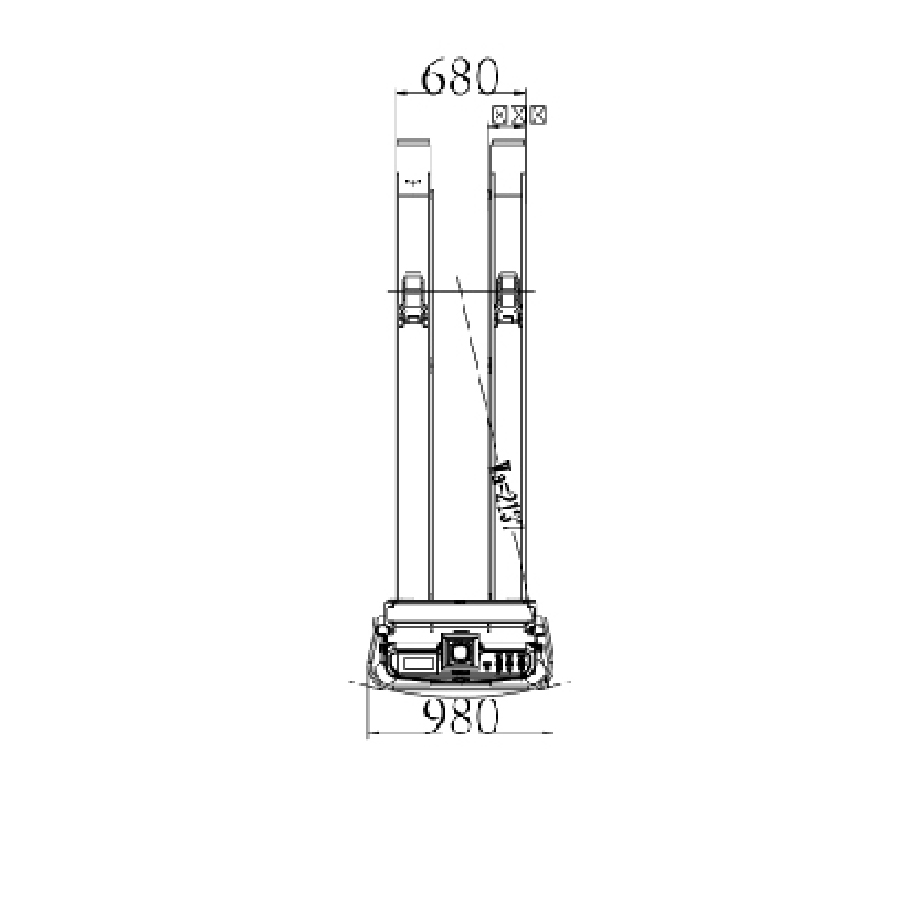

TOP VIEW
3000
Load Capacity(kg)
1.5
Maximum Speed(m/s)
4300
Rotation Diameter(mm)
135
Lifting Height(mm)
Basics
Dimensions (L*W*H)
2910 mm * 980 mm * 2210 mm
Net Weight
700 kg
Rotation Diameter
φ4300 mm
Capacities
Rated Load
3000 kg
Lifting Height
135 mm
Load Center
1200 mm
Fork Size (L*W*H)
2400 mm * 195 mm * 55 mm (x2)
Fork Outer Width
680 mm(Standard)
Safety
Protective Range
360° coverage
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by 3 front & rear laser sensors
Safety Edge
Front half-pack protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
Vision Obstacle Avoidance
Optional
Motion
Drive Mode
Single steering wheel
Navigation Mode
Natural navigation, vision / laser SLAM
Driving Direction
Forward, backward, rotate, left / right turn
Speed
0~1.5 m/s
Stop Position Accuracy
±10 mm
Stop Angle Accuracy
±1°
Battery
Battery Type
LFP
Battery Capacity
24V 200AH
Battery Life
6-8h
Charging Method
Automatic / Manual charging
Charging Time
≤3h
Life Cycle
2000 cycles
HMI
LCD Panel
Support
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turing, warning, music playback, etc.
Button Operation
Emergency stop button, power switch button, operation button
Manual Remote Controller
Support
Expansion Interface
RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5%(no-load) / 3%(full-load)
Network Communication
WiFi IEEE802.11 a/b/g/n/ac/ax, 5G(optional)
Aisle Width for 90° Pallet Pickup
4500 mm (pallet: 1200*1200 mm)
