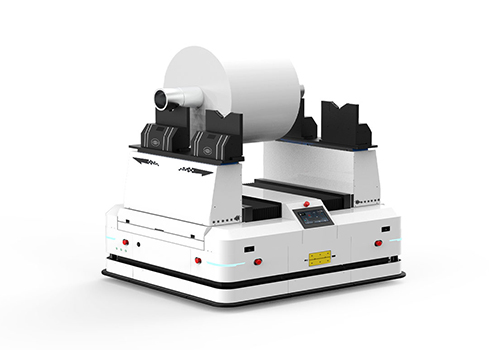

LXSR-CM51500Z
DUAL-STATION ROLL MATERIAL ROBOT
Ultra-Precise Handling for Lithium Battery Production.
Streamline lithium battery production with the LXSR-CM51500Z coating machine material handling robot. It handles loading/unloading of copper and aluminum foil and core recycling with ±1mm docking accuracy using 3D visual docking and intelligent perception algorithms. Suitable for autonomous and manual charging, it supports a 1600kg load and operates up to 1.0 m/s. The LXSR-CM51500Z enhances precision and efficiency, making it essential for lithium battery manufacturing.
Streamline lithium battery production with the LXSR-CM51500Z coating machine material handling robot. It handles loading/unloading of copper and aluminum foil and core recycling with ±1mm docking accuracy using 3D visual docking and intelligent perception algorithms. Suitable for autonomous and manual charging, it supports a 1600kg load and operates up to 1.0 m/s. The LXSR-CM51500Z enhances precision and efficiency, making it essential for lithium battery manufacturing.
FEATURES
High Security
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
Easy to Deploy
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS
Lifting shaft
Lifting Method
1500
Rated Load(kg)
250
Lifting Height(mm)
1500 - 1750 mm
Docking Height
Basics
Dimensions(L*W*H)
1800 mm * 1600 mm * 1450 mm
Net Weight
1200 kg
Rotation Diameter
φ2300 mm
Capacities
Lifting Height
250 mm
Rated Load
1500 kg
Docking Height
1500 - 1750 mm
Lifting Method
Lifting roll core
Material Weighing
Optional
Safety
Protective Range
Including the body and the load-carrying rack
Protective Measures
Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance
360° coverage by front & rear laser
Safety Edge
All-round protection
E-stop Button
The reachable range of a single hand around the robot
Audio-Visual Alarm
Light indication+ Audio prompt
3D Vision Obstacle Avoidance
Optional
Motion
Drive Mode
2 steering wheel drive
Navigation Mode
Natural navigation
Driving Direction
Omnidirectional, rotation
Speed
0~1.0 m/s
Navigation Accuracy
±20 mm
Docking Accuracy
±10 mm (laser docking), ±5 mm (QR code visual docking)
Loading Docking Accuracy
≤ ±5 mm
Battery
Battery Type
LFP
Battery Capacity
48V 125AH
Battery Life
≥8h
Charging Method
Automatic / Manual charging
Charging Time
2.5 h
Life Cycle
1500 cycles
HMI
LCD Panel
Optional
Light Indication
Robot status, fault alarm, battery power, etc.
Sound Prompt
Turning, warning, music playback, etc.
Manual Remote Controller
Support
Expansion Interface
RJ45(100MB)
Environment
Application Scenarios
Indoor
Operating Temperature
0~40℃
Humidity
10~90%RH, no condensation
Ground Slope
≤ 5% / 3°
Obstacle Crossing Height
≤ 5 mm
